All About How Clay Soil in the LA Basin Causes Sewer Line Damage Over Time

Why Clay Soil in the LA Basin Is a Hidden Threat to Your Sewer Lines

How clay soil in the LA Basin causes sewer line damage over time is something most homeowners never think about — until they're dealing with a backed-up drain, a cracked foundation, or a soggy patch of yard that won't dry out.

Here's a quick answer to what's happening underground:

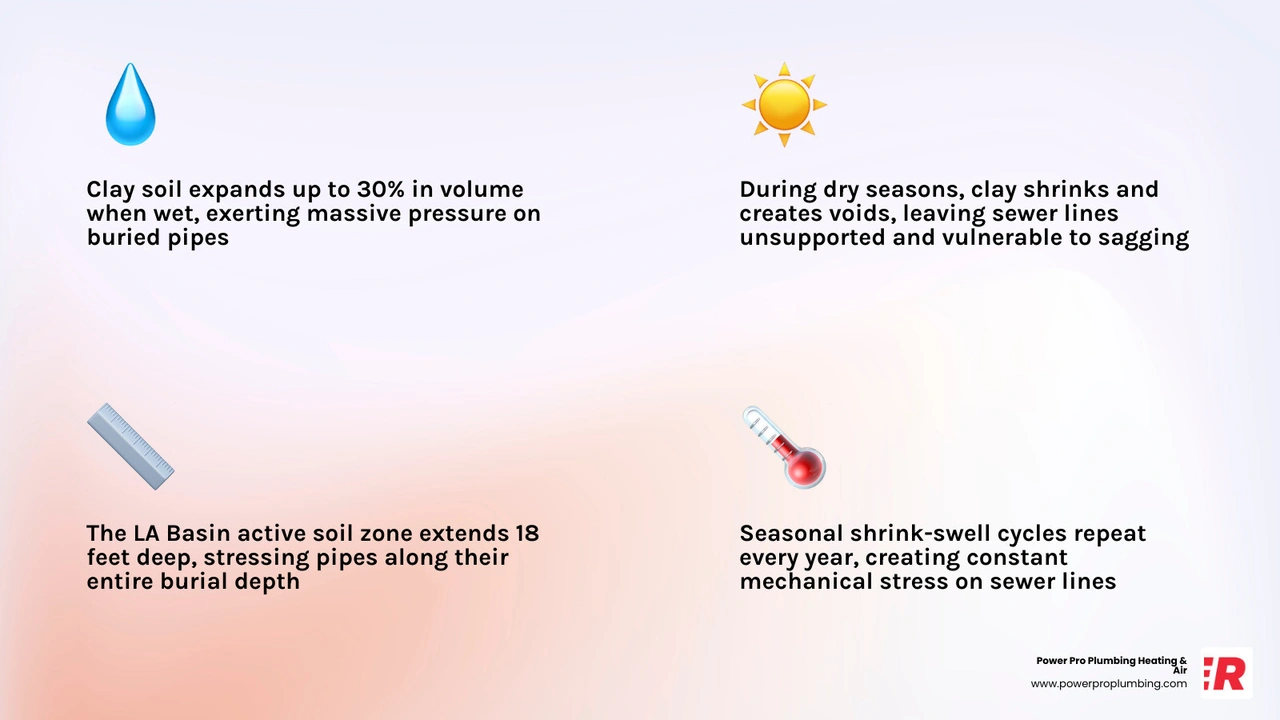

• Clay soil expands when wet — up to 30% in volume — pushing against pipes and shifting their position
• Clay soil shrinks when dry — pulling away from pipes, leaving them unsupported and vulnerable to sagging
• This shrink-swell cycle repeats every season, creating constant mechanical stress on buried sewer lines
• The active soil zone in LA extends about 18 feet deep, meaning pipes throughout their entire burial depth are affected
• Older pipe materials — like vitrified clay, cast iron, and Orangeburg — are especially vulnerable to cracking and joint separation under this pressure
• Tree roots exploit the cracks that soil movement creates, accelerating damage further

The Los Angeles Basin sits on some of the most expansive clay soil in California. Neighborhoods across LA County, Orange County, and the South Bay all share this same geological reality. Homes built in the post-war boom of the 1950s and 1960s — many still running their original sewer laterals — face the compounding effects of decades of soil movement, pipe aging, and seasonal weather swings.

This guide breaks down exactly how and why this happens, what warning signs to watch for, and what your options are as a Southern California homeowner.

I'm Daniel Rodriguez, a second-generation C-36 licensed plumber who has worked on sewer systems across the Greater Los Angeles area and has seen how clay soil in the LA Basin causes sewer line damage over time in homes ranging from post-war Lakewood bungalows to hillside properties in the South Bay. That on-the-ground experience shapes everything in this guide, so you can walk away with a clear, honest picture of what's happening beneath your home.

How Clay Soil in the LA Basin Causes Sewer Line Damage Over Time

To understand why your sewer line is under constant threat, we have to look at the unique geology beneath our feet. The Los Angeles Basin is rich in montmorillonite clay. On a microscopic level, montmorillonite clay particles act like tiny, highly absorbent sponges. When Southern California gets its seasonal rains, this clay drinks up the water and swells dramatically, expanding by up to 30% in volume. When the dry summer heat returns, the clay loses its moisture and shrinks back down, leaving deep fissures and voids in the earth.

This dramatic volume change doesn't just happen at the surface. In the LA Basin, the "active soil zone"—the underground depth where soil moisture fluctuates throughout the year—extends down to about 18 feet. Because most residential sewer lines are buried anywhere from 2 to 6 feet deep, they sit directly in the middle of this high-movement zone.

Every single year, your sewer pipes are squeezed, lifted, dropped, and pulled by the surrounding earth. Over time, this constant physical stress leads to structural failures. To catch these issues before they turn into major household emergencies, proactive homeowners rely on Sewer Line Inspections Prevent Plumbing Issues to see exactly how the shifting earth is affecting their pipes.

Understanding How Clay Soil in the LA Basin Causes Sewer Line Damage Over Time

The continuous movement of expansive clay soil damages sewer lines through several distinct mechanical processes:

• Differential Settlement and Pipe Shear: Soil doesn't expand or contract uniformly. If one section of soil under your home stays wet while an adjacent section dries out, the ground settles unevenly. This is known as differential settlement. When one part of a rigid sewer pipe is held firmly in place and another section drops, it creates a shearing force that can snap the pipe in two.
• Upward Heave: During wet winters, the expanding clay exerts immense upward pressure on buried sewer lines. This upward heave can lift sections of the pipe, throwing off the delicate gravity slope required for wastewater to flow downward.
• Dry Season Subsidence and Pipe Sag: When the soil dries out and shrinks, it pulls away from the pipe. Without the surrounding soil to support its weight, the sewer line begins to sag.
• Pipe Bellies: As a result of sagging, low spots—or "bellies"—form in the sewer lateral. Waste and water pool in these bellies instead of draining away, leading to chronic, slow-moving drains and eventual blockages.

Long-Term Effects: How Clay Soil in the LA Basin Causes Sewer Line Damage Over Time

When these soil forces act on a sewer line for decades, the damage progresses from minor alignment issues to catastrophic failures.

At first, the shifting soil causes minor joint separation. As the pipes are pushed and pulled, the connections between individual pipe segments begin to slide apart. Once a joint separates, it creates a pipe offset, where one section of the pipe sits higher or lower than the adjoining section. These offsets act like speed bumps, catching solid waste and toilet paper, which quickly leads to clogs.

As the physical stress continues, the rigid pipe walls will eventually develop hairline cracks. Over time, these cracks widen into structural fractures, culminating in complete pipe collapse. When a sewer line collapses or becomes severely offset, the wastewater has nowhere to go but backward, resulting in the messy, hazardous scenarios we cover in our guide on the Warning Signs and Causes of a Sewage Backup.

The Role of Seasonal Weather and Tree Roots in Clay Soil Damage

Our Southern California Mediterranean climate features dry, hot summers followed by relatively short, wet winters. This dramatic swing in seasonal weather accelerates sewer line damage. During the long summer drought, the clay soil dries out completely, shrinking and pulling away from the sewer lateral. This leaves the pipe suspended and highly vulnerable to sagging.

At the same time, trees and large shrubs across your property become desperate for water. Their root systems are biologically programmed to seek out the nearest source of moisture and nutrients. Your sewer line—carrying a warm, nutrient-rich stream of wastewater—acts as a beacon for thirsty roots.

When the soil shifts and creates tiny cracks or separated joints in your sewer line, water vapor escapes into the dry surrounding earth. Tree roots follow this moisture trail directly to the source. Once they find a tiny opening, they squeeze inside to drink. If you suspect this is happening in your yard, it is crucial to recognize the 5 Signs of Tree Roots in Sewer Lines You Must Not Ignore.

How Tree Roots Exploit Soil Movement

Tree roots are incredibly opportunistic. They don't need a massive hole to get started; they can exploit the microscopic fractures and minor joint gaps caused by clay soil expansion.

Once a single hair-like root penetrates a separated joint or a tiny crack, it begins to feed on the nutrients inside the pipe. As the root drinks, it grows thicker and stronger. This growth exerts immense outward pressure on the pipe walls, acting like a wedge that forces the crack wider or pushes the pipe joint further apart.

Over time, the roots outside the pipe will actually wrap around the exterior, a process called root encapsulation. As these external roots grow, they squeeze the pipe from the outside while the internal roots fill the pipe's interior. This dual pressure leads to severe structural intrusion and, eventually, a completely collapsed pipe. To understand how this process progresses, you can read more about the Signs of Root Intrusion in Your Sewer Line.

How Different Pipe Materials Interact with Expansive LA Clay

The severity of clay soil damage depends heavily on the material of your sewer lateral. Older homes in areas like Long Beach, Pasadena, and Lakewood often still have their original sewer lines, which react very differently to soil movement than modern materials.

Vulnerabilities of Older Pipe Materials

If your home was built before 1970, there is a high probability that your sewer lateral is made of vitrified clay, cast iron, or Orangeburg.

Original vitrified clay pipes were installed in short, 2-to-3-foot segments. Plumbers joined these segments together using simple concrete mortar joints. As the expansive clay soil shifts, these rigid mortar joints quickly crack and crumble, leaving the pipe completely vulnerable to joint separation, offsets, and root entry.

Cast iron pipes, widely used in post-war tract homes across the LA Basin, have a typical lifespan of 50 to 75 years. In June 2026, most of these pipes are at or well beyond their expected service life. Cast iron is incredibly heavy and rigid, making it highly susceptible to snapping under the stress of differential soil settlement.

Additionally, cast iron suffers from internal corrosion. As waste flows through the pipe, hydrogen sulfide gas collects along the top of the pipe wall. This gas reacts with moisture to form sulfuric acid, which corrodes the iron from the inside out, creating a channel along the bottom of the pipe that eventually collapses under the pressure of the surrounding clay.

Orangeburg pipes, made of wood pulp sealed with coal tar, were popular due to post-war material shortages. These pipes lack structural strength. Under the heavy, squeezing pressure of wet clay soil, Orangeburg pipes deform, flatten, and eventually turn back into compressed paper, resulting in complete structural failure.

Warning Signs of Clay Soil-Induced Sewer Line Damage

Because your sewer lateral is buried deep underground, you can't see the damage occurring. However, your home will drop clues when the shifting soil has compromised your line. Watch for these common warning signs:

• Chronic, Slow Drains: If multiple sinks, tubs, and showers in your home drain slowly, the issue isn't a simple hair clog. It usually points to a main sewer line belly or root blockage caused by soil movement.
• Gurgling Toilets: When wastewater struggles to pass through an offset joint or a root mass, air bubbles are forced back up the line, causing your toilets to make a distinct gurgling or bubbling sound.
• Sewer Gas Odors: A cracked or separated sewer line allows sewer gas to escape. If you smell a foul, rotten-egg odor in your yard or near your basement drains, your line is likely damaged.
• Lush, Soggy Patches in the Yard: If a section of your lawn is suddenly greener, faster-growing, or constantly soggy during dry weather, it is a clear sign that a separated joint is leaking nutrient-rich wastewater into the soil.
• Foundation Cracks and Sinkholes: When a sewer line leaks beneath your home's foundation, the escaping water washes away the supporting soil. This leads to localized foundation settling, visible cracks in your slab, or small sinkholes in your yard.

Because these symptoms can mirror other plumbing issues, we recommend scheduling professional Sewer Camera Inspections. This non-invasive diagnostic tool allows us to run a high-resolution, waterproof camera directly down your line to pinpoint offsets, cracks, and root intrusion without digging up your yard.

Prevention, Mitigation, and Trenchless Repair Solutions

While you can't change the geology of the Los Angeles Basin, you can take active steps to protect your plumbing from expansive clay soil.

The key to preventing soil-related damage is moisture control. Since clay only swells when wet and shrinks when dry, maintaining consistent soil moisture around your home's foundation and sewer line is highly effective. You can achieve this by installing a foundation watering system, such as a dedicated drip or soaker line, to keep the soil from drying out and cracking during the hot summer months.

Additionally, managing drainage is crucial. Ensure your gutters and downspouts direct rainwater at least five feet away from your home's foundation and sewer path. For properties with poor natural drainage, installing French drains can channel excess groundwater away from your pipes, reducing the risk of upward heave during heavy winter rains.

If your sewer line has already sustained damage, we offer advanced Sewer Line Repair Solutions designed to restore your system. Taking action early is the best way of Preventing Damage to Your Home's Main Sewer Line before a minor crack escalates into a costly slab or foundation failure.

Modern Trenchless Repair Methods

Gone are the days when repairing a sewer line meant digging a massive, destructive trench through your beautifully landscaped yard, driveway, or patio. Today, we utilize advanced trenchless technology to repair clay-damaged pipes with minimal disruption.

The two primary trenchless methods are:

1. Cured-in-Place Pipe Lining (CIPP): This method is ideal for pipes that are cracked or have separated joints but are still structurally aligned. We insert an epoxy-saturated felt liner into the existing pipe. Once in place, we inflate the liner and cure it using heat or UV light. This creates a smooth, seamless, "pipe-within-a-pipe" that completely seals cracks, covers joint gaps, and prevents future root intrusion.
2. Pipe Bursting: If your sewer lateral is severely cracked, collapsed, or has heavy offsets, pipe bursting is the preferred solution. We pull a heavy, cone-shaped bursting head through the old pipe. The head breaks the old clay or cast iron pipe apart, pushing the fragments into the surrounding soil, while simultaneously pulling a brand-new, seamless High-Density Polyethylene (HDPE) pipe in behind it.

To learn more about how these non-invasive options work, check out our guide on How Does Trenchless Sewer Line Repair Work. If you are weighing your options, our breakdown of Comparing Sewer Repair Methods can help you decide which approach is right for your property.

Los Angeles Permitting and Regulations

In Southern California, sewer lateral repairs are subject to strict local regulations. Because sewer lines carry hazardous waste, any repair that goes beyond routine maintenance (like hydro-jetting or snaking) requires official permits.

If you live in the City of Los Angeles, any structural repair—whether it is traditional open-cut excavation or a trenchless method—must be permitted through the Los Angeles Department of Building and Safety (LADBS) or the Los Angeles Bureau of Sanitation. These agencies ensure that all repairs comply with the California Plumbing Code.

Furthermore, municipal codes require that all physical sewer repairs be performed by a C-36 licensed plumbing contractor. If a pipe offset exceeds 25% of the pipe's interior diameter, or if the line has completely collapsed, local regulations may mandate a full open-cut replacement for that section rather than a simple spot repair. Working with an experienced, licensed team ensures that your repairs are fully permitted, inspected, and up to code.

Frequently Asked Questions about Clay Soil and Sewer Lines

How much can clay soil expand when wet?

Clay soil in the Los Angeles Basin can expand by up to 30% in volume when saturated with water. This dramatic volume change occurs because the montmorillonite clay minerals absorb water directly into their crystalline structure, behaving like a sponge and generating immense underground pressure against buried sewer pipes.

What is the active soil zone in Los Angeles?

The active soil zone in Los Angeles is the depth of soil that experiences seasonal moisture fluctuations, extending down to approximately 18 feet. Because this zone undergoes constant expansion and contraction cycles throughout the year, any sewer line buried within this depth is subjected to ongoing physical stress.

Can trenchless sewer repair fix pipes damaged by shifting clay soil?

Yes, trenchless sewer repair is highly effective for clay-damaged pipes. CIPP lining seals separated joints and cracks, while pipe bursting replaces crushed or heavily offset lines with seamless HDPE pipe. Because HDPE is highly flexible, it bends and shifts with future clay soil movement without cracking or separating.

Conclusion

Living in the beautiful Los Angeles Basin means accepting the unique geological challenges that come with it. The expansive clay soil beneath our homes is constantly moving, putting relentless pressure on our underground plumbing. If you own an older home in Southern California, understanding how this soil behaves is the first step in protecting your property from costly, unexpected sewer failures.
