When Your AC Stops Cold: Recognizing AC Contactor Burned Out Symptoms and Causes

AC contactor burned out symptoms and causes are something every Southern California homeowner should know — especially when the mercury climbs past 90°F and your system suddenly goes quiet or won't stop running.

Here is a quick snapshot of the most common signs and causes:

Most Common Burned Out AC Contactor Symptoms:

• AC unit fails to turn on or won't shut off
• Loud buzzing, humming, or chattering noise from the outdoor unit
• Visible burn marks, pitting, or charring on the contacts
• Warm air blowing from vents despite the system running
• Burning smell coming from the condenser cabinet

Most Common Causes:

• Voltage fluctuations, power surges, or undervoltage
• High ambient heat inside the condenser panel
• Dust, moisture, or insect intrusion on the contacts
• Normal wear and electrical arcing over time
• Mismatched coil voltage or an undersized contactor

Catching these warning signs early matters more than most homeowners realize. According to industry data, 68% of compressor failures trace back to contactor issues — and if charred contacts are left unchecked, there is a 72% chance the compressor fails within 30 days. The NFPA also reports that faulty contacts contribute to 15–20% of AC-related electrical fires, making this a safety issue, not just a comfort one.

The contactor is essentially the electrical gatekeeper of your AC system. When your thermostat calls for cooling, the contactor closes its contacts to send power to the compressor and condenser fan motor. When that component burns out, the entire cooling process breaks down — often without much warning.

I'm Daniel Rodriguez, a second-generation tradesman with C36 and C20 licenses in plumbing and HVAC, and I've seen how AC contactor burned out symptoms and causes are frequently misdiagnosed or ignored until a much more expensive compressor replacement becomes unavoidable. In the sections below, I'll walk you through everything you need to know to diagnose the problem, understand what drove it, and prevent it from happening again.

Understanding AC Contactor Burned Out Symptoms and Causes

To understand why a contactor burns out, it helps to know exactly what it does. Think of the contactor as a heavy-duty electrical switch. Unlike a standard light switch that you flip by hand, the AC contactor is controlled electromagnetically.

When your thermostat detects that your home's temperature has risen above your set limit, it sends a low-voltage (usually 24V) signal to the contactor's electromagnetic coil. This coil creates a magnetic field that pulls down a metal bridge (the armature), closing the electrical contacts. Once closed, high-voltage electricity (typically 240V in residential systems) flows directly to your compressor and outdoor fan motor.

Because the contactor handles such high electrical currents under extreme outdoor conditions, it is subjected to constant stress. Over time, the silver alloy coating on the contacts wears thin. Every time the contacts open and close, a tiny electrical arc occurs. This arcing generates intense heat, eventually leading to pitted, charred, or even welded contacts.

When the contactor fails, the compressor is starved of stable power. Unstable power causes the compressor to draw excessive amperage, overheat, and eventually fail. This is why 68% of compressor failures originate from an unresolved contactor problem. If your system is struggling to cool your home, checking the contactor should be one of your first steps. For more on what to look for when your system underperforms, read our guide on AC Not Cooling Properly What to Check.

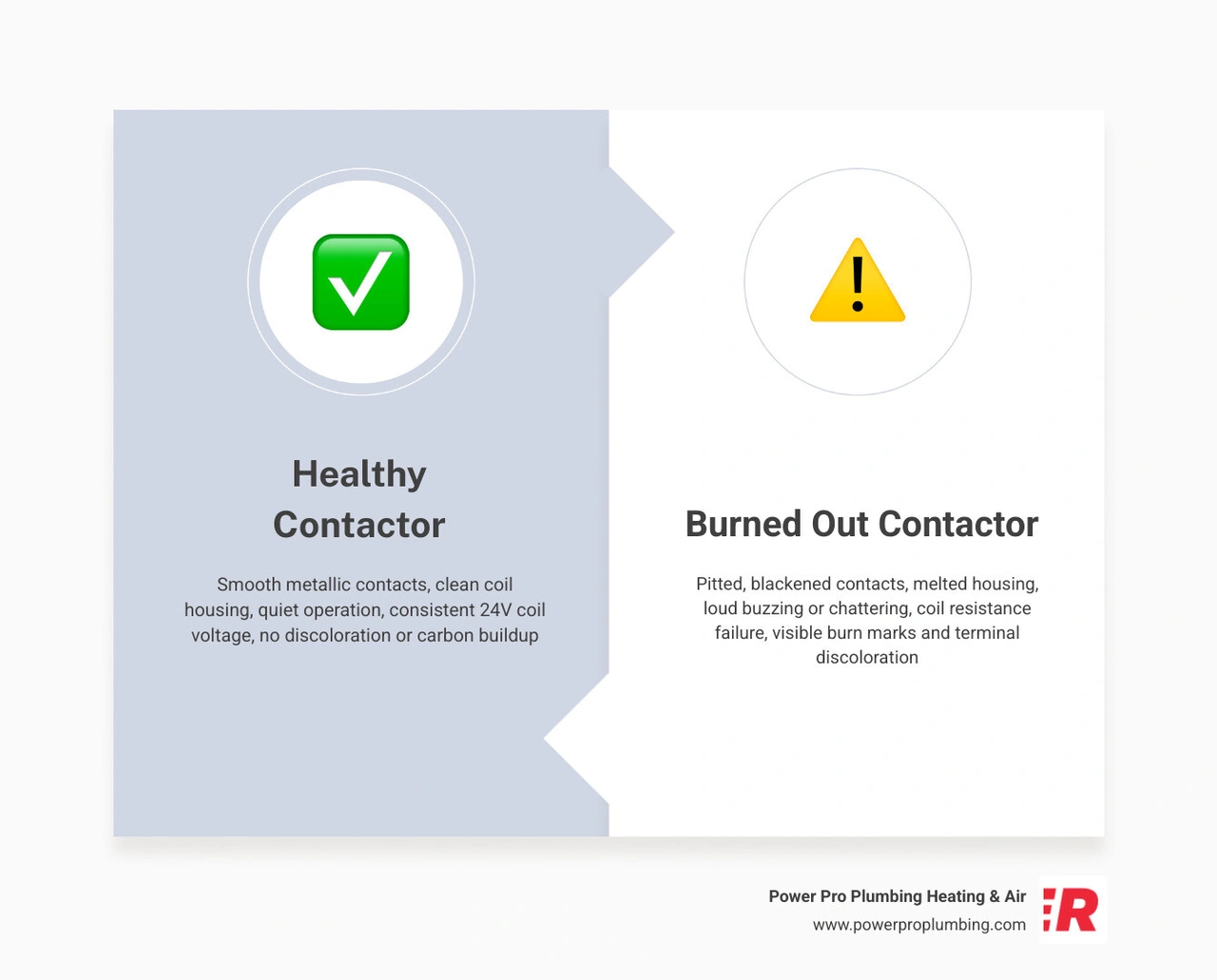

Healthy vs. Burned Contactor Comparison

Key AC Contactor Burned Out Symptoms to Watch For

An AC contactor rarely fails in complete silence. Usually, it leaves a trail of auditory, visual, and performance clues. Recognizing these ac contactor burned out symptoms and causes early can save you from a major system breakdown during a Southern California heatwave.

If your contactor is failing, you might also notice that your outdoor fan stops spinning entirely. If you encounter this specific issue, you can read more about troubleshooting steps in our article on AC Fan Not Working. Additionally, some electrical faults can cause strange pressure imbalances or vibrations that mimic other sounds; learn more about these in our post on the Reasons Your AC Is Making a Whistling Sound.

Auditory Red Flags: Buzzing, Humming, and Chattering

Your air conditioner should run with a steady, predictable hum. It definitely shouldn't sound like a swarm of angry bees.

• Loud Buzzing or Humming: This usually points to a weak electromagnetic coil or pitted magnet faces. When dirt, rust, or carbon buildup gets between the stationary core and the moving armature, the magnetic circuit cannot seal completely. The armature vibrates rapidly against the core at 60 Hz (the frequency of your electrical supply), creating a loud buzz.
• Rapid Chattering: Chattering is a rapid, machine-gun-like opening and closing of the contacts. This happens when the control voltage drops below the level required to hold the armature down (typically below 85% of nominal voltage). As the voltage sags, the contactor drops out, the voltage recovers slightly, the contactor pulls back in, and the cycle repeats. This rapid cycling destroys the contacts in seconds.
• Shading Ring Failure: Inside AC contactors, a small copper loop called a shading ring is used to delay a portion of the magnetic field, ensuring continuous holding force as the alternating current crosses the zero-voltage point. If this ring cracks or corrodes, the contactor will buzz loudly even with perfect control voltage.

If your system is making these noises and won't start, check out our Tips Tricks When Your AC Unit Wont Turn On.

Physical Signs of AC Contactor Burned Out Symptoms and Causes

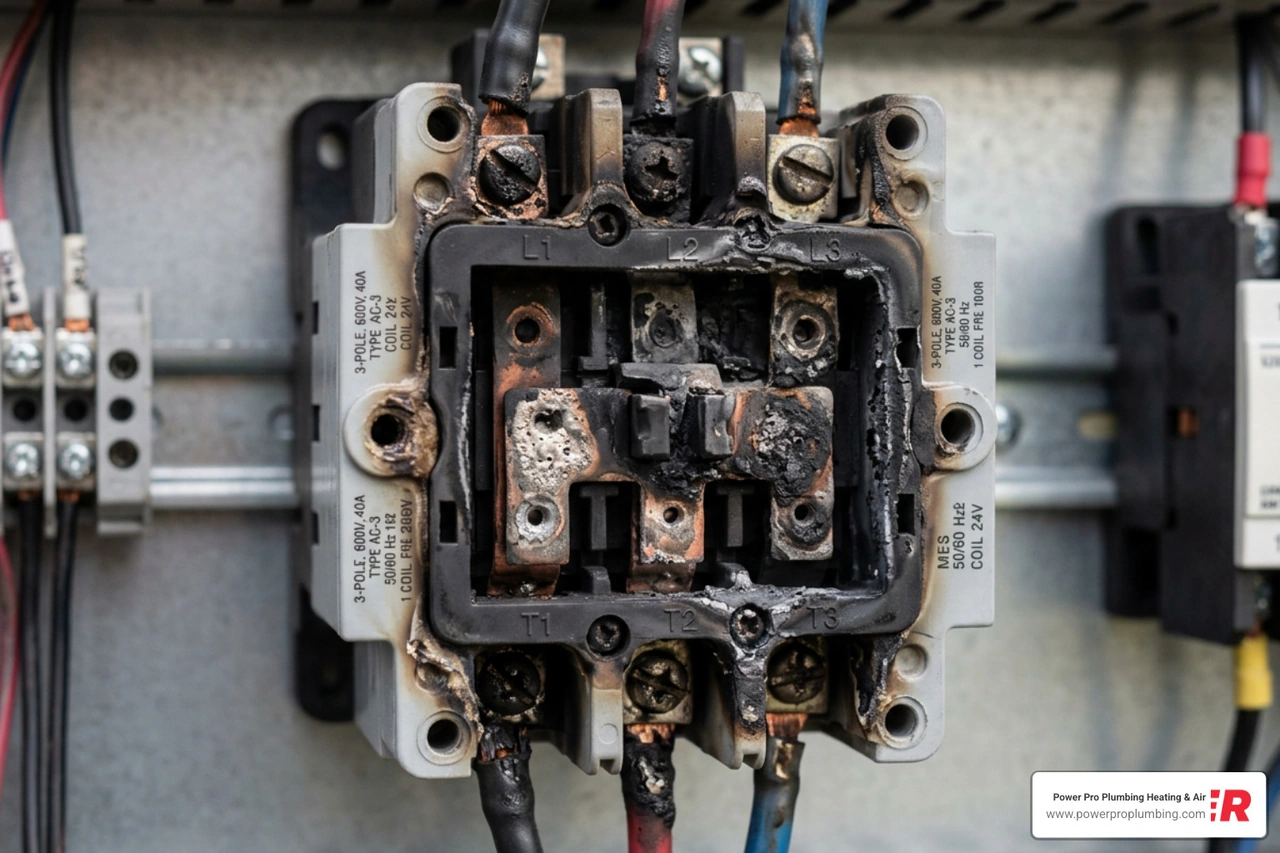

If you suspect your contactor is bad, a quick visual inspection of the condenser's electrical panel (after safely turning off the breaker!) will often confirm your suspicions:

• Pitted or Charred Contacts: Healthy contacts have a smooth, silver-alloy plating. Burned contacts look black, crusty, and heavily pitted, resembling a miniature volcanic landscape.
• Melted Plastic Casing: The heat generated by poor electrical connections or a burning coil can easily exceed 400°F, melting the plastic guide walls of the contactor housing.
• Carbon Buildup (Soot): A fine black powder coating the contactor and surrounding wires is a clear sign of severe electrical arcing.
• Terminal Discoloration: Screw terminals that have turned blue, brown, or black have been subjected to extreme resistive heating due to loose wire connections.

If you spot any of these physical signs, it is highly recommended to seek professional assistance. Learn when to call in the experts by reading When to Call a Professional for AC Problems.

System Performance Issues: Warm Air and Constant Running

A damaged contactor directly impacts how your system operates:

• Welded Contacts and Constant Running: Sometimes, the electrical arc between the contacts is so hot that it melts the silver alloy, welding the contacts permanently shut. When this happens, the compressor and outdoor fan will run continuously—even if you turn the thermostat off. This can lead to a frozen evaporator coil, liquid slugging, and a destroyed compressor.
• Warm Air Blowing from Vents: If the contactor coil is completely burned out (open loop), it won't pull in at all. Your indoor blower fan might still run, but because the outdoor unit isn't receiving power, your system will simply circulate warm indoor air.
• Short Cycling: If the contactor has a weak coil or loose terminals, it may intermittently drop connection, causing the system to turn on and off rapidly. This places immense thermal stress on the compressor.

If your contactor has caused widespread system damage, you might need to look at your options. We outline key considerations in our guide on 7 Things to Consider When Replacing Your AC.

Primary Electrical and Environmental Causes of Contactor Burnout

Understanding what causes a contactor to burn out is the key to preventing repeat failures. While normal wear and tear will eventually claim any mechanical part, premature failures are almost always driven by external electrical or environmental stressors.

If you live in areas like Cerritos, CA, where dust and seasonal temperature swings are common, your outdoor unit is particularly vulnerable. For a complete localized look at maintaining your system, check out our AC Repair Cerritos CA Complete Guide.

Electrical Stress: Overvoltage, Undervoltage, and Voltage Sags

Your contactor's coil is designed to operate within a narrow voltage window—typically 85% to 110% of its rated voltage. For a standard 24V residential control circuit, this means the voltage must stay between 20.4V and 26.4V.

• Overvoltage: If a power surge or a failing control transformer sends excessive voltage to the coil, it forces more current through the tiny copper windings than they can handle. This causes the insulation on the wires to melt, leading to an internal short circuit and immediate coil burnout.
• Voltage Sags: When heavy loads (like your compressor) start up, they draw massive inrush currents (often 6 to 8 times their running current). If your home's electrical service or the control transformer is undersized, this inrush causes a temporary voltage sag. If the voltage drops too low, the contactor chatters, sparking across the main contacts and creating severe pitting.

Why Undervoltage Causes Coil Burnout

It seems counterintuitive: how does low voltage cause a coil to overheat and burn out? The answer lies in the physics of alternating current (AC) electromagnets.

When a contactor coil is first energized, the metal armature is open, leaving a large air gap in the magnetic circuit. Because of this air gap, the coil's electrical impedance (resistance to AC current) is very low. This causes a massive inrush current—typically 5 to 10 times higher than the current needed to keep the contactor closed.

Once the armature pulls in and seals flat against the stationary core, the magnetic circuit closes. This closed circuit drastically increases the coil's impedance, dropping the current down to a safe, low-power sealed state (holding current).

If there is an undervoltage condition, the magnetic field generated by the coil is too weak to overcome the internal spring tension. The armature fails to seal completely. Because the magnetic circuit remains open, the coil stays stuck in its high-current inrush state. Within minutes, this sustained high current generates extreme thermal overload, melting the coil's wire insulation and burning it out.

Environmental Factors: Heat, Dust, Moisture, and Pests

Because the contactor lives in the outdoor condenser unit, it is completely exposed to the elements:

• Extreme Ambient Heat: During hot Southern California summers, the air temperature inside the condenser's metal electrical panel can easily exceed 140°F. This high ambient temperature reduces the contactor's ability to dissipate heat, accelerating insulation degradation.
• Pest Intrusion (The "Ant" Problem): Certain species of ants—including those common in Los Angeles and Orange County—are highly attracted to the electromagnetic fields produced by contactor coils. They crawl between the open contact points. When the contactor closes, the ants are crushed, creating a greasy buildup of carbon and organic gunk that prevents a clean electrical connection. This leads to severe arcing and eventual contact welding.
• Dust and Moisture: Windblown dust and coastal moisture can coat the magnetic pole faces. This debris prevents the armature from sealing flat, causing persistent buzzing and overheating. Moisture can also bridge terminals, causing direct short circuits.

Mismatched Coil Voltage Ratings

Using a contactor with an incorrect coil voltage rating is a recipe for rapid failure. For example, installing a contactor rated for a 230V coil on a system that actually supplies 208V or 240V can cause long-term degradation.

At 208V, the coil may suffer from weak pull-in force, leading to chattering and contact pitting. Conversely, running a lower-rated coil on a higher voltage line causes chronic over-temperature operation. Always ensure the replacement contactor's coil voltage matches your system's control circuit exactly.

Why a Newly Replaced Contactor Might Burn Out Quickly

If you or a technician just replaced an AC contactor and it burned out again within days or weeks, do not install another one yet. A rapid contactor failure is a clear warning sign that the contactor is merely the victim of a deeper, systemic issue within your HVAC system.

In these situations, a proper diagnostic is critical to prevent throwing money away on ruined parts. For more on why expert setup is vital, see why Professional AC Installation Is a Must.

Troubleshooting AC Contactor Burned Out Symptoms and Causes

When diagnosing a rapidly failing contactor, we follow a systematic troubleshooting protocol:

1. Verify Control Voltage: Measure the voltage at the coil terminals while the system is trying to start. If it drops below 20.4V (on a 24V system), you have a control circuit issue, such as a failing transformer or a bad thermostat wire connection.
2. Test Coil Resistance: Disconnect power and measure coil resistance. A healthy AC coil should read between 100 and 500 Ohms. A reading of 0 Ohms indicates a shorted coil, while "OL" (Open Loop) indicates a burned, broken wire within the coil.
3. Measure Load Current: Use a clamp-on ammeter to measure the current drawn by the compressor and fan motor. If the current exceeds the contactor's Full Load Amperage (FLA) rating, the contactor is undersized or the motor is failing.
4. Inspect for Mechanical Binding: Manually press the contactor's armature guide with an insulated tool (with power completely disconnected!) to ensure it moves smoothly without sticking or catching.

Root Causes of Rapid Burnout: Mechanical and Systemic Issues

• Compressor Binding (Locked Rotor): If your compressor's internal bearings are seizing, it will draw Locked Rotor Amps (LRA)—which can be 138A to 184A or more—every time it tries to start. This massive current will instantly pit or weld the contacts of a standard contactor.
• Undersized Contactor: Contactors are rated by their inductive amperage capacity. If a technician installs a 30-amp contactor on a system that requires a 40-amp load, the contacts will overheat and burn out rapidly.
• Loose Wiring Connections: A loose screw terminal creates high electrical resistance. This resistance generates localized heat that quickly travels down the metal terminal, melting the contactor housing and damaging the internal spring tension.
• Severe Short Cycling: If your AC is short cycling due to a clogged air filter, low refrigerant, or an oversized system, the contactor may cycle on and off dozens of times an hour. This rapid arcing destroys the contacts prematurely.

Preventive Maintenance and Installation Best Practices

The best way to handle a burned-out contactor is to prevent it from burning out in the first place. With a few basic maintenance habits, you can easily extend the lifespan of your contactor to its normal 5-to-10-year range.

• Schedule Seasonal Tune-Ups: Having a licensed professional inspect your electrical panel once or twice a year is the single best defense against unexpected breakdowns. Our Power Pro Club maintenance program is designed to catch weak contactors, loose terminals, and failing capacitors before they leave you stranded in the heat.
• Clean the Contacts and Control Box: During routine maintenance, we use electrical contact cleaner and a soft brush to remove dust, spider webs, and insect debris from the contactor.
• Tighten Electrical Terminals: Thermal expansion and system vibrations can loosen screw terminals over time. We torque all power connections to manufacturer specifications (typically 1.2 to 2.5 N·m) to prevent resistive heating.
• Install Protective Accessories: If your home is prone to voltage fluctuations, installing a high-quality surge protector on your outdoor disconnect box can shield both your contactor and your expensive compressor from high-voltage spikes.
• Ensure Proper System Sizing: An oversized or poorly designed system will short cycle constantly, wearing out the contactor and compressor. To understand how we calculate the perfect fit for your home, read our guide on How to Determine the Proper Size AC Unit. If it is time for an upgrade, we can guide you through the process of AC Replacement Orange County.

Frequently Asked Questions

Can I run my AC with a bad contactor?

We strongly advise against running your AC if you suspect the contactor is failing. A bad contactor delivers unstable, fluctuating power to your compressor. This causes the compressor to run hot, draw excessive amperage, and suffer severe mechanical wear.

Additionally, if the contacts weld shut, your compressor will run continuously without stopping, which can freeze your evaporator coil, flood your compressor with liquid refrigerant, and permanently destroy it. A welded contactor also represents a significant electrical fire hazard. If you hear loud chattering or smell burning, shut the system down at the breaker immediately.

How long do AC contactors usually last?

Under normal operating conditions, a high-quality residential AC contactor typically lasts between 5 and 10 years.

However, this lifespan can be significantly shortened by external factors. Systems that cycle frequently due to being oversized, homes with unstable incoming voltage, or units installed in highly dusty, humid, or pest-heavy environments may require a contactor replacement every 2 to 3 years if preventative maintenance is neglected.

Why is my AC contactor making a loud buzzing sound?

A loud buzzing sound from your contactor is almost always a sign of mechanical or electrical strain. The most common causes include:

1. Dirty Pole Faces: Dust, rust, or dead insects trapped between the stationary electromagnet and the moving armature prevent the magnetic circuit from sealing completely, causing the metal parts to vibrate at 60 Hz.
2. Low Control Voltage: If your 24V control circuit is dropping voltage, the magnetic field won't be strong enough to hold the armature down firmly.
3. Broken Shading Ring: A cracked copper shading ring inside the contactor prevents a smooth, continuous magnetic pull, leading to loud, persistent buzzing.

Conclusion

Understanding ac contactor burned out symptoms and causes is the first step toward protecting your home's comfort and avoiding costly secondary repairs. While the contactor itself is a relatively simple and inexpensive component, ignoring its warning signs can quickly lead to a ruined compressor or even an electrical fire.
