The Late-Summer Cooling Crisis and the Need for Real Diagnostics
Your air conditioner has been running nonstop all day, but the house still feels uncomfortably warm, and you are starting to worry about a sudden breakdown. When the intense weather hits, the last thing you want to do is guess about the health of your cooling equipment. Understanding exactly what an HVAC technician actually tests during an electrical inspection is the key to knowing whether your system is truly prepared for the peak season or if it is secretly on the verge of failure. A superficial glance at your outdoor unit will not catch the invisible degradation happening inside the electrical panel. True peace of mind requires scientific measurements and a deep understanding of how electrical stress affects your equipment.
For a comprehensive overview of how these components work together, learn more about your HVAC system.
August late-summer heat waves take a heavy toll on an HVAC system's electrical framework. Every time your air conditioner cycles on, a massive surge of electricity travels through the wiring, capacitors, and contactors. Over weeks of continuous operation, this constant demand generates immense heat and electrical wear. Many homeowners assume that if the system is blowing cold air today, everything is fine. However, electrical components rarely fail instantly without warning. They degrade slowly, losing their ability to store and transfer power efficiently.
A true professional relies on scientific measurements, not guesswork, to prevent these sudden failures. A quick visual check is never enough to determine if a capacitor is weak or if a contactor is restricting voltage. Technicians must use specialized tools to measure the exact electrical flow and compare it against the manufacturer's original specifications. By testing the core components that dictate system reliability during peak temperature months, a professional can spot a failing part weeks before it causes your compressor to shut down completely.
The Heart of the Start-Up: Measuring Microfarads on Dual-Run Capacitors
One of the most critical tests performed during a diagnostic visit involves the dual-run capacitor. This small, cylindrical component acts as a massive battery for your air conditioner. It stores a high volume of electrical energy and releases it in a powerful burst to jump-start the compressor and the outdoor fan motor. Because motors require significantly more energy to start than they do to keep running, the capacitor is absolutely essential for a successful cooling cycle.
Understanding Microfarad Measurements
To determine the health of this component, technicians take microfarad measurements on dual-run capacitors. A microfarad (µF) is the scientific unit used to measure electrical capacitance, or the ability of a component to store an electrical charge. Using a specialized digital multimeter, a technician safely tests the capacitor to see exactly how much energy it can still hold. This is not a pass-or-fail guess; it is a precise mathematical reading.
The HVAC industry follows a strict standard for capacitor health. A healthy capacitor must read within a specific tolerance range—usually +/- 5% or 6% of its printed manufacturer rating. For example, if a capacitor is rated for 45 microfarads, a reading of 43 µF is perfectly healthy. However, if the reading drops to 38 µF, the component is failing.
• 35 µF — Healthy Range (+/- 5%): 33.25 to 36.75 µF — Failing Reading (Requires Replacement): Below 33.25 µF
• 40 µF — Healthy Range (+/- 5%): 38.0 to 42.0 µF — Failing Reading (Requires Replacement): Below 38.0 µF
• 45 µF — Healthy Range (+/- 5%): 42.75 to 47.25 µF — Failing Reading (Requires Replacement): Below 42.75 µF
• 50 µF — Healthy Range (+/- 5%): 47.5 to 52.5 µF — Failing Reading (Requires Replacement): Below 47.5 µF
Readings outside this tight tolerance are a mathematical indicator of imminent failure. When a capacitor loses its ability to store enough energy, the compressor struggles to start. This forces the motor to pull extra electricity directly from your home's breaker panel, causing lights to dim and wires to overheat. By measuring the microfarads proactively, a technician allows you to replace a weakened capacitor before it completely strands you without air conditioning.
Assessing Power Flow: Testing Voltage Drop Across Pitted Contactors
The next major checkpoint in the electrical panel is the contactor. The contactor is a heavy-duty mechanical switch that controls the flow of high-voltage electricity to the compressor and the outdoor fan. When your thermostat calls for cooling, a low-voltage signal energizes a coil inside the contactor. This pulls a set of metal contacts together with a loud "clack," bridging the gap and allowing 240 volts of electricity to surge into the outdoor unit.
The Danger of Electrical Arcing
Because the contactor handles such a massive amount of electricity, it takes a beating every time the system turns on. Just before the metal plates touch, the electricity jumps the gap through the air. This is called electrical arcing. Over time, this intense heat burns, scars, and pits the smooth metal surfaces. In Cerritos, the continuous August heat waves cause constant on-and-off cycling, drastically accelerating the wear and pitting on contactors compared to units in milder regions.
To test this component, technicians measure the voltage drop across pitted contactors. They use a multimeter to check the voltage entering one side of the switch and compare it to the voltage exiting the other side. In a healthy contactor, the voltage should be nearly identical. If there is a significant drop in voltage, it means the pitted, burned metal is acting as a roadblock, starving the compressor of the power it needs to run.
When voltage drops, the laws of electrical physics dictate that amperage must spike to compensate. This spike in amperage creates severe heat inside the compressor windings. If left unchecked, a bad contactor will overheat the system and eventually lead to a blown AC compressor. Testing the voltage drop is the only way to catch this hidden resistance before the damage becomes permanent.
Checking the Compressor's Electrical Draw
The compressor is the heart of your cooling system, responsible for pumping refrigerant through the coils to remove heat from your home. Because it does the heaviest lifting, it consumes the most electricity. A critical part of an electrical inspection is measuring the compressor's amp draw, which is the amount of electrical current the motor requires to operate under a load.
Comparing Actual Draw to Rated Load Amps
Every air conditioner has a data plate bolted to the side of the outdoor cabinet. This plate lists the Rated Load Amps (RLA), which is the maximum amount of current the compressor should draw during normal operation. A technician will clamp an amp meter around the main power wire feeding the compressor to measure the live current while the system is running.
• Normal Operation: The actual amp draw should sit comfortably below the RLA listed on the data plate.
• High Resistance: If the amp draw is creeping up toward the maximum RLA, the system is working far harder than it should.
• Danger Zone: If the amp draw exceeds the RLA, the compressor is overheating and safety switches may begin tripping.
It is important to note that high ambient temperatures naturally increase electrical resistance. During intense August late-summer heat waves, the system is already forced to work harder, which naturally pushes the amp draw higher. Technicians account for this outdoor temperature when evaluating the reading. An abnormally high amp draw is a critical warning sign of internal mechanical wear, a failing capacitor, or an impending electrical short. By catching a rising amp draw early, you can often address the root cause before the compressor burns itself out.
Inspecting Relays, Wiring, and Electrical Connections
Beyond the major components, the physical pathways that carry electricity must be thoroughly inspected. An air conditioner is a powerful machine that vibrates constantly while running. Over months and years of operation, these micro-vibrations can slowly back out screws and loosen electrical connections inside the control panel.
The Importance of Secure Connections
A loose electrical connection is highly dangerous. When a wire is not tightly secured to its terminal, the electricity must jump a microscopic gap, creating heat. This heat can melt wire insulation, scorch the control board, and eventually cause a total loss of power. Technicians visually and physically inspect all wiring for signs of heat damage, melted insulation, or corrosion. They then use insulated tools to tighten every single terminal connection, ensuring optimal power delivery and preventing electrical shorts.
Important Safety Note: This step is strictly for licensed professionals due to extreme high-voltage hazards. The outdoor unit contains 240 volts of electricity, which is lethal. Even when the breaker is turned off, capacitors can hold a dangerous electrical charge. Homeowners should never attempt to open the electrical panel or tighten wires themselves.
Routine professional checks make a massive difference in system longevity. One local homeowner reached out for a service call on an HVAC unit installed a couple of years prior. The technician arrived on time, diagnosed the wiring connections safely, and explained the entire testing process clearly. The service call was completed smoothly, and the technician followed up to ensure the system maintained perfect functionality safely. This level of thoroughness prevents minor loose wires from becoming major fire hazards.
Thermostat Calibration and Control Board Diagnostics
While the outdoor unit handles the heavy lifting, the indoor components serve as the brain of the operation. The thermostat and the control board must communicate flawlessly to keep your home comfortable. During an electrical inspection, a technician tests these low-voltage systems to ensure they are sending and receiving the correct commands.
Testing the Low-Voltage Communication
Your thermostat sends low-voltage signals (usually 24 volts) to the control board to initiate cooling, heating, or fan-only cycles. Technicians verify that the thermostat is accurately reading the indoor temperature and is calibrated correctly. If a thermostat is reading the room temperature incorrectly, it will cause the system to short-cycle or run endlessly, driving up your utility bills.
Next, the technician inspects the main control board located inside the indoor air handler or furnace. They look for tiny burn marks, failing relays, or erratic signal outputs. The control board is responsible for staging the start-up sequence—turning on the blower motor, opening dampers, and signaling the outdoor unit. A healthy control board is essential for the efficient operation of both cooling cycles and heating repair and maintenance down the road. If the board is sending weak signals, the entire system will behave erratically.
Why Diagnostic Transparency Matters for Homeowners
Not all HVAC inspections are created equal. There is a massive difference between a superficial "look-over" and a scientifically backed diagnostic inspection. Diagnostic transparency is about empowering the homeowner by showing them exactly what is being tested and why, rather than just handing them a repair bill at the end of the visit.
Empowering You With Knowledge
When you understand terms like microfarads, voltage drop, and amp draw, you are empowered to ask the right questions. You no longer have to take a technician's word for it when they say a part is "going bad." A transparent professional will show you the multimeter reading, explain the manufacturer's tolerance, and let the math speak for itself. This clear evidence for repair recommendations completely eliminates guesswork.
• Visually looks at the capacitor for rust or bulging. — Scientific Diagnostic Inspection: Measures exact microfarads with a digital multimeter.
• Listens to the contactor click on and off. — Scientific Diagnostic Inspection: Measures the exact voltage drop across the contactor plates.
• Feels the air coming out of the vents. — Scientific Diagnostic Inspection: Measures the compressor's amp draw against the RLA rating.
• Hands you a bill with vague "electrical issues" listed. — Scientific Diagnostic Inspection: Explains readings clearly without resorting to confusing jargon.
A thorough professional will always explain their findings clearly. Another customer scheduled a routine check for their plumbing and water heating systems. The technician performed a highly thorough leak check and diagnostic inspection without ever resorting to up-selling. Because the technician explained exactly what was being tested and shared the clean results, the customer felt completely confident in the inspection. That same standard of transparency applies to HVAC electrical testing—you deserve to see the proof behind the recommendations.
Frequently Asked Questions About HVAC Electrical Testing
What does an HVAC electrical inspection include?

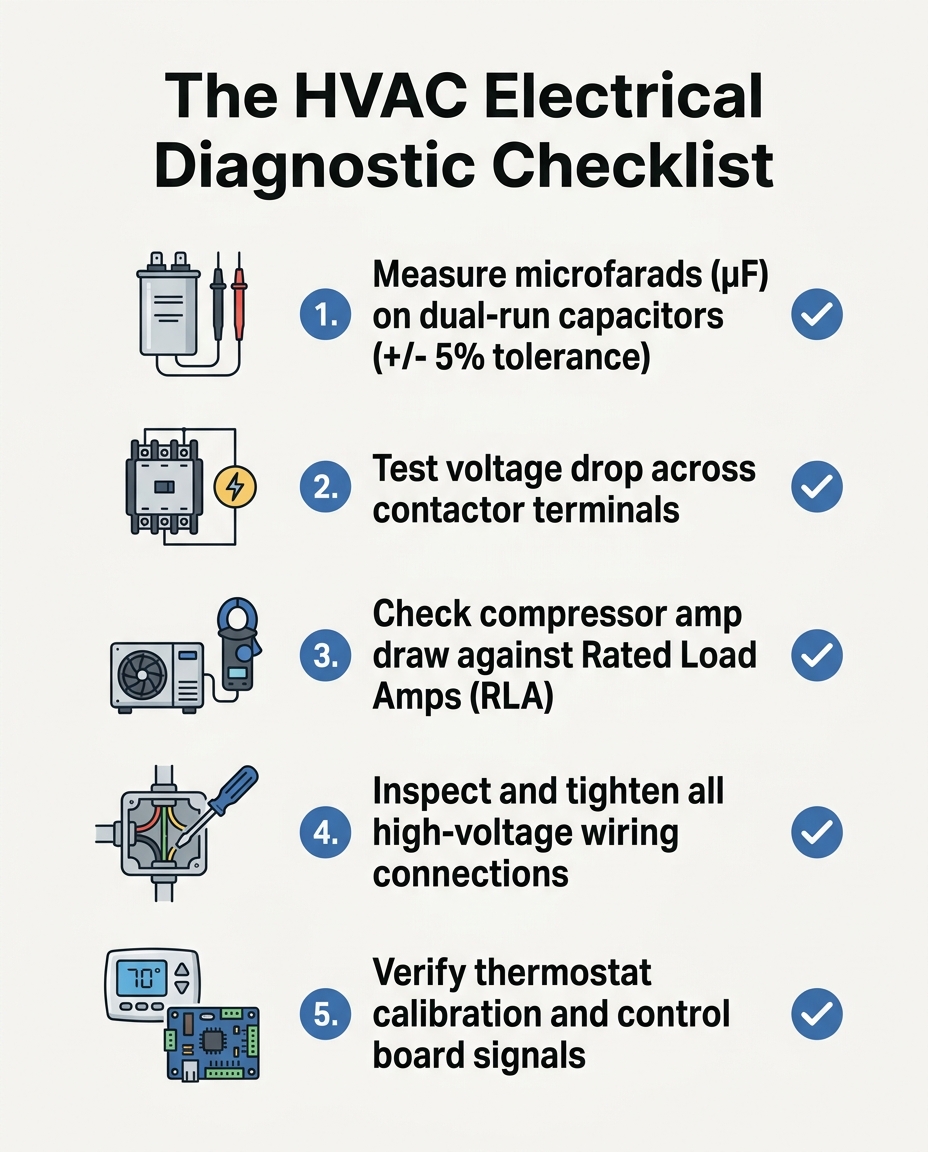

A thorough inspection includes measuring microfarads on capacitors, testing voltage drop across contactors, checking compressor amp draw, and inspecting all wiring. Technicians also verify thermostat calibration and ensure the control board is sending the correct low-voltage signals. This comprehensive approach ensures every link in the electrical chain is functioning safely.
How do technicians test AC capacitors?
Technicians safely discharge the capacitor to remove stored energy, then use a specialized digital multimeter to measure its microfarad rating. They compare this exact reading to the manufacturer's printed tolerance, which is usually within +/- 5%. If the reading falls outside this range, the capacitor is mathematically failing and requires replacement.
What happens during an AC tune up?
Alongside cleaning the condenser coils, clearing the condensate drain, and checking refrigerant levels, a comprehensive tune-up includes a full electrical diagnostic. The technician tightens all high-voltage connections and tests components like the contactor and motors. This proactive electrical testing is designed to catch failing components early before they cause a sudden breakdown.
Why is my AC drawing too many amps?
High amp draw can be caused by a failing dual-run capacitor that is struggling to start the motor, or a pitted contactor causing significant voltage drops. Extreme ambient heat also increases electrical resistance, forcing the system to pull more current to do its job. If your system is drawing too many amps, a professional must diagnose the root cause to prevent compressor burnout.
How often should HVAC electrical components be tested?
Electrical components should be tested annually by a licensed professional, ideally before the peak cooling season begins. Regular testing allows technicians to track the slow degradation of capacitors and contactors over time. Catching these electrical issues early prevents unexpected mid-summer failures and extends the overall lifespan of your equipment.
Ensuring Your System Survives the Late-Summer Heat: What an HVAC Technician Actually Tests During an Electrical Inspection
Understanding the diagnostic process ensures you receive a thorough, professional inspection rather than a quick visual check. Proactive testing of capacitors, contactors, and wiring is the most effective way to prevent unexpected breakdowns when the weather is at its worst. By measuring microfarads and monitoring voltage drops, a skilled professional can track the exact health of your system and keep it running efficiently.
Never settle for guesswork when it comes to the safety and reliability of your home's cooling equipment. Seek out transparent, evidence-based HVAC diagnostics that put the data right in front of you. If your system has been struggling to keep up, or if you simply want the peace of mind that comes from a scientific inspection, it is time to take action. Reach out today to schedule HVAC service and ensure your system is fully prepared to handle whatever the season brings.
