Understanding Clay Soil Challenges in the Los Angeles Basin
The geology of the Southern California coast presents a unique set of challenges for underground infrastructure. Across the Los Angeles Basin—from the foothills of the San Gabriel Valley down to the coastal plains of the South Bay—the ground beneath our feet is heavily composed of expansive clay soils.
Clay soil behaves like a sponge. During our winter rainy seasons, it absorbs moisture and swells significantly. Conversely, during hot, dry summers, the soil loses moisture, shrinks, and cracks. This continuous cycle of seasonal shifting exerts immense physical pressure on buried utilities.
For older homes built with vitrified clay sewer pipes, this constant movement is highly destructive. Because clay is a rigid, brittle material, it cannot bend or flex to accommodate ground movement. Over time, this shifting leads to:
- Joint Misalignment: The individual two-foot sections of older clay pipes shift out of alignment, breaking the mortar seals between them.
- Root Intrusion: Once a joint is compromised, thirsty tree roots easily penetrate the pipe in search of moisture, creating stubborn blockages.
- Structural Cracking: The sheer weight of expanding soil can crack or crush brittle clay walls.
Because these changes happen slowly underground, homeowners often don't realize their pipes are failing until a major backup occurs. This is why Sewer Line Inspections Matter for early detection, helping you address minor joint shifts before they turn into a complete structural failure.
Does Trenchless Sewer Repair Work in Clay Soil Areas Like the LA Basin?
When considering whether modern repair methods are viable in these challenging conditions, the short answer is yes. However, success depends heavily on the specific condition of the existing vitrified clay pipe (VCP) and how the surrounding soil behaves.

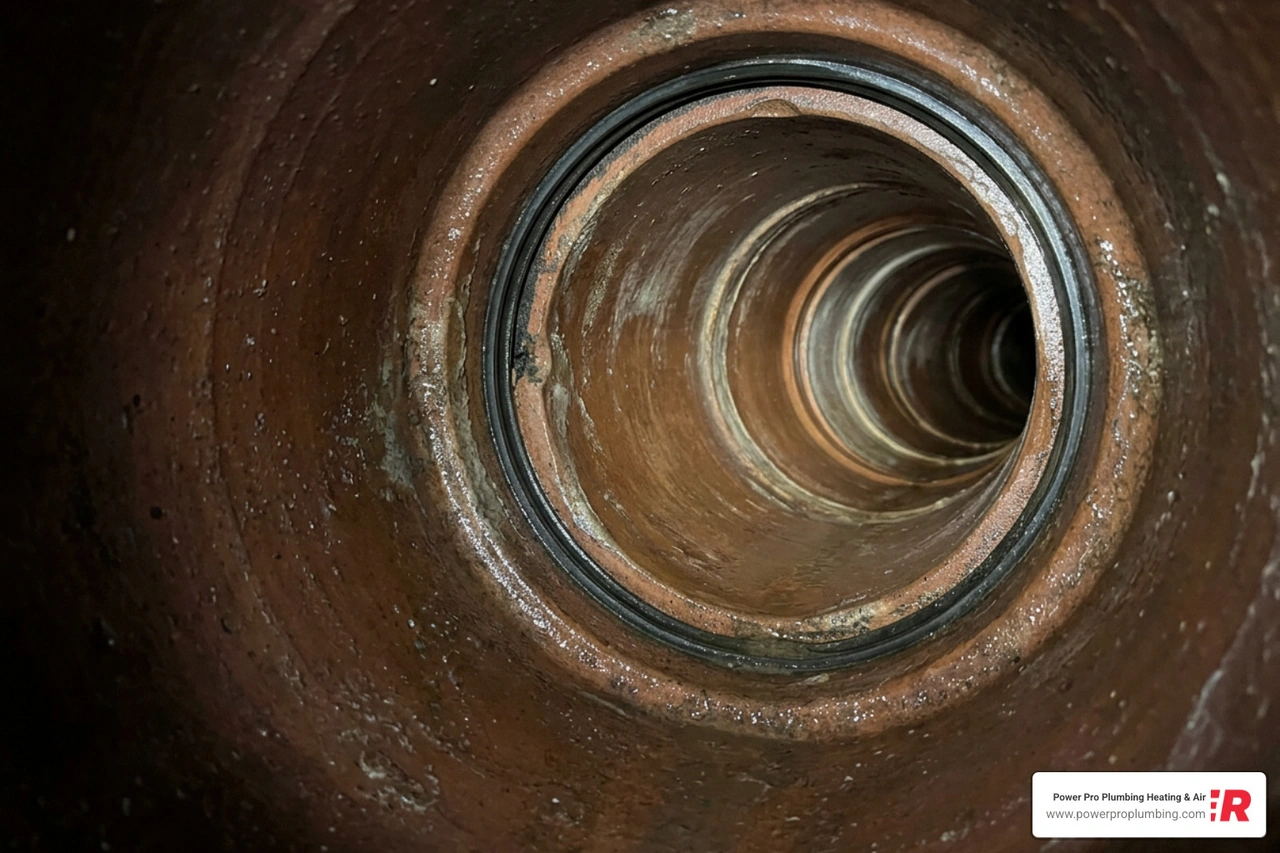

To determine if your line is a candidate, we must first perform a high-definition Sewer Camera Inspection Los Angeles CA. This specialized camera allows us to see inside the pipe in real-time, mapping out cracks, offsets, and root blockages.

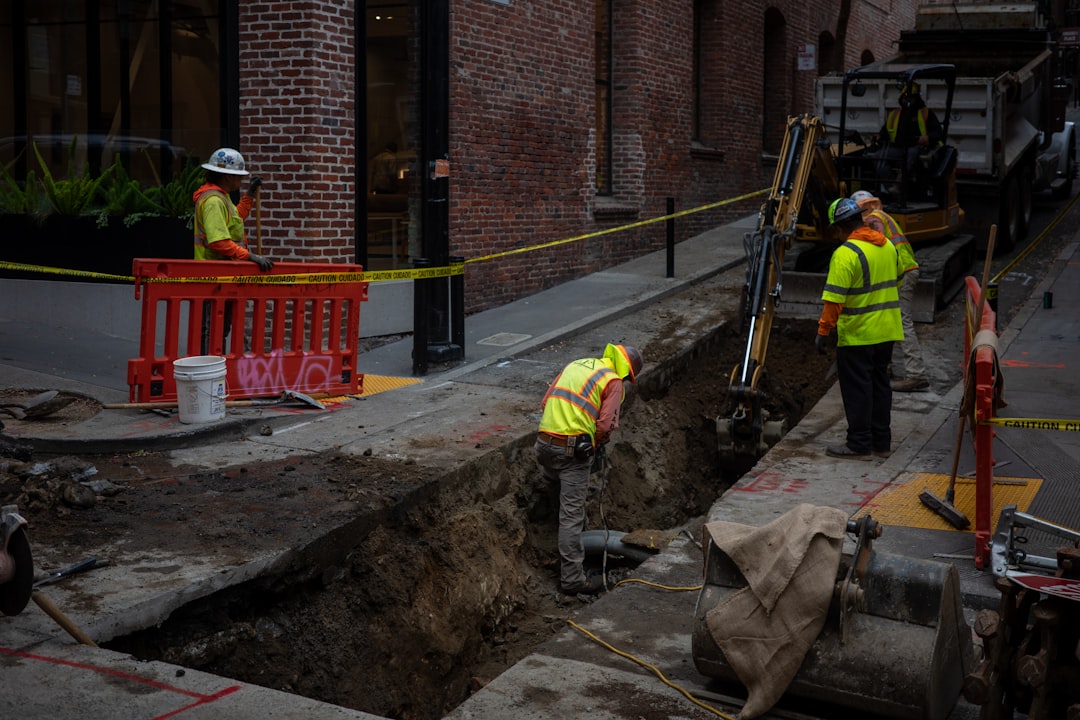

In clay soil areas, two main forces are at play: soil friction and ground displacement. Because clay soil is dense and heavy, traditional excavation requires moving massive amounts of earth, which can destabilize the surrounding ground. Trenchless methods, on the other hand, either work entirely inside the existing pipe structure or displace the soil only minimally. This preserves the surrounding soil stability, making it a highly reliable option for Southern California yards.
Why Clay Pipes Fail and How Trenchless Solutions Help
Historically, clay pipes were installed in short segments using bell-and-spigot joints sealed with mortar. As these joints age and the soil shifts, they become the primary point of failure. Tree roots are naturally drawn to the moisture escaping these weak joints. Once a single root hair finds its way inside, it grows rapidly, expanding the gap and eventually cracking the pipe.
Trenchless solutions address this root vulnerability directly. By creating a seamless, jointless barrier inside the old pipe, trenchless technology eliminates the seams where roots typically enter. This structural rehabilitation reinforces the pipe against future ground movement, ensuring that seasonal soil expansion and contraction will not compromise your sewer line again. Regular Sewer Line Inspections Prevent Plumbing Issues by identifying these joint failures early, allowing you to opt for trenchless rehabilitation before the pipe structure is completely lost.
When Does Trenchless Sewer Repair Work in Clay Soil Areas Like the LA Basin?
While trenchless technology is highly versatile, it is not a one-size-fits-all fix. To determine if does trenchless sewer repair work in clay soil areas like the la basin for your property, we look for several key indicators:
- Intact Pipe Structure: The existing clay pipe must still be relatively round. If the pipe has completely collapsed or is pancaked under the weight of the clay soil, there is no pathway for a liner or a bursting head to pass through.
- Minor to Moderate Cracking: Hairline cracks, fractured walls, and localized damage are excellent candidates for trenchless lining.
- Access Pit Availability: Although "no-dig" implies zero digging, trenchless methods typically require one or two small access pits at the ends of the sewer lateral to launch and retrieve the equipment.
- Minimal Pipe Sagging (Bellies): If the shifting clay soil has caused the pipe to sag deeply in one area (creating a "belly"), a pipe liner will simply follow that sag, which does not resolve the drainage issue. In these cases, a localized spot repair or traditional excavation may be required to restore the proper slope.
For homes experiencing frequent backups, evaluating the main Sewer line's structural integrity is the first step toward finding a long-term solution.
Comparing Trenchless Methods for Clay Pipes
Not all trenchless methods are created equal, especially when dealing with the heavy, expansive clay of the Southern California basin. Choosing the right approach depends on whether you need to rehabilitate the existing pipe or replace it entirely.
| Feature | CIPP Lining (Cured-in-Place Pipe) | Pipe Bursting |
|---|---|---|
| Primary Action | Creates a new pipe inside the old one | Breaks old pipe, pulls in a new one |
| Material Used | Epoxy-saturated felt liner | High-Density Polyethylene (HDPE) |
| Impact on Diameter | Slightly reduces interior diameter | Maintains or increases pipe size |
| Best For | Cracked pipes with minor joint offsets | Collapsed, broken, or undersized lines |
| Excavation Needed | Usually one small access point | Two small access pits |
| Soil Displacement | None | Displaces surrounding clay soil outward |
Understanding How Does Trenchless Sewer Line Repair Work helps homeowners choose the right method for their specific property layout and pipe condition.
CIPP Lining vs. Pipe Bursting in Expansive Soils
In the heavy clay soils of the San Gabriel Valley and South Bay, the choice between CIPP lining and pipe bursting often comes down to structural integrity and diameter needs.
CIPP Lining uses a flexible, felt tube coated in a heavy-duty epoxy resin. Once inserted into the clay pipe, it is inflated and cured, forming a seamless, rock-hard structural pipe within the old shell. Because it adheres to the existing pipe walls, it results in a very slight reduction in pipe diameter. However, the ultra-smooth interior surface of the epoxy resin actually improves flow capacity and resists future root penetration.
Pipe Bursting, on the other hand, is a full replacement method. A heavy steel bursting head is pulled through the old clay pipe, fracturing the brittle clay and pushing the pieces directly into the surrounding clay soil. Simultaneously, it pulls a brand-new, seamless High-Density Polyethylene (HDPE) pipe into place behind it. HDPE is highly flexible, exceptionally strong, and boasts incredible ground movement resistance, making it the gold standard for areas prone to soil shifting. Furthermore, pipe bursting allows us to upsize your sewer line if your household needs a larger lateral.
How Trenchless Sewer Repair Works in Clay Soil Areas Like the LA Basin
The process of implementing these advanced solutions in clay-heavy neighborhoods is highly systematic:
- Preparation and Cleaning: We use specialized hydro-jetting equipment from our Drain Sewer Services to clear out all grease, scale, and tree roots, restoring the clay pipe to its original interior diameter.
- Creating Access Points: One or two small access pits are carefully excavated, typically near the house foundation or near the property line.
- Installation:
- For CIPP: The epoxy-saturated liner is pulled or inverted into the pipe, inflated with air or water, and left to cure.
- For Pipe Bursting: A heavy-duty pull cable is fed through the line, attached to the bursting head and the new HDPE pipe, and pulled through using a hydraulic pulling machine.
- Final Inspection: Once the seamless pipe creation is complete, we run a camera through the line one final time to verify a perfect, obstruction-free installation before reconnecting your home's drains.
Pros and Cons of No-Dig Sewer Solutions in Southern California
Like any home improvement project, trenchless sewer repair has its trade-offs. Understanding these pros and cons can help you decide if it is the right path for your home, especially in established neighborhoods like Norwalk, Pasadena, or Santa Monica.
The Pros:
- Landscape Preservation: Traditional sewer replacement requires digging a deep, continuous trench across your property. This can destroy mature trees, manicured lawns, expensive hardscaping, and custom driveways. Trenchless methods preserve your curb appeal by keeping the work underground.
- Driveway and Structure Protection: If your sewer lateral runs directly beneath a concrete driveway, patio, or walkway, trenchless repairs allow us to replace the pipe without jackhammering your hardscape.
- Quick Turnaround: Traditional excavation can take up to a week or more to dig, replace, backfill, and restore. Most residential trenchless projects are completed in just one to two days, minimizing the time your water service is offline.
- Long-Term Durability: Both cured epoxy liners and HDPE pipes are engineered to resist root intrusion and withstand the ground movement common in Southern California's clay soils.
The Cons:
- Structural Limitations: If a clay pipe has completely collapsed, is severely crushed, or has a major structural sag, trenchless methods cannot be used. In these scenarios, traditional excavation is necessary to physically rebuild that section of the line.
- High Upfront Equipment Needs: Trenchless repair requires highly specialized, state-of-the-art equipment and certified technicians to operate it safely and effectively.
- Access Challenges: In some dense urban properties or hillside homes, finding a suitable location for even a small access pit can be challenging.
If you are dealing with a failing sewer line in the Mid-Cities area, exploring your options for Sewer Line Repair Norwalk CA can help you weigh the benefits of a no-dig solution against traditional methods.
Frequently Asked Questions About Clay Soil Sewer Repairs
Can trenchless repair handle completely collapsed clay pipes?
No, trenchless methods like CIPP lining and pipe bursting cannot be used on completely collapsed clay pipes. A pipe liner requires an open, relatively round pipe structure to slide through and inflate. Similarly, a pipe bursting head needs a continuous path to follow; a complete collapse blocks the pull cable and can cause the bursting head to veer off course.
If only a small section of your clay pipe has collapsed, we can often perform a localized "spot repair" using traditional excavation to replace that single broken section, and then use trenchless lining to protect the rest of the intact line.
How long do trenchless sewer repairs last in expansive clay?
Trenchless sewer repairs are designed for exceptional longevity. Both high-quality epoxy CIPP liners and new HDPE pipes are engineered for a service life of 50 years or more.
Because these materials are seamless and highly flexible, they are far better suited to handle the seasonal expansion and contraction of the LA Basin's clay soils than the original rigid, jointed clay pipes. This means you can expect decades of trouble-free performance without the risk of joint separation or root intrusion.
Do trenchless repairs require permits in Los Angeles?
Yes. All sewer repair and replacement work in Southern California requires proper permitting and code compliance, regardless of the method used. In the City of Los Angeles, permits are issued through the Los Angeles Department of Building and Safety (LADBS).
If the repair extends into the public right-of-way (such as under the sidewalk or street to connect to the city main), additional permits and traffic control plans may be required by the local municipality. Working with a fully licensed and experienced local plumbing company ensures that all work is performed to code, inspected properly, and fully permitted.
Conclusion
When dealing with the shifting clay soils of the Los Angeles Basin, preserving your home's landscaping, driveways, and mature trees is a top priority. Trenchless sewer repair is a highly effective, durable, and minimally invasive solution that stands up to the unique geological demands of Southern California. By eliminating weak joints and creating a seamless, root-resistant pipe, trenchless technology provides a long-term fix that keeps your sewer system running smoothly for decades.
